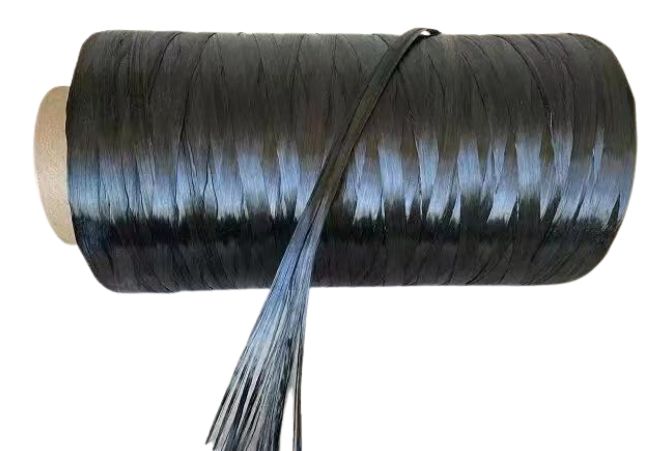

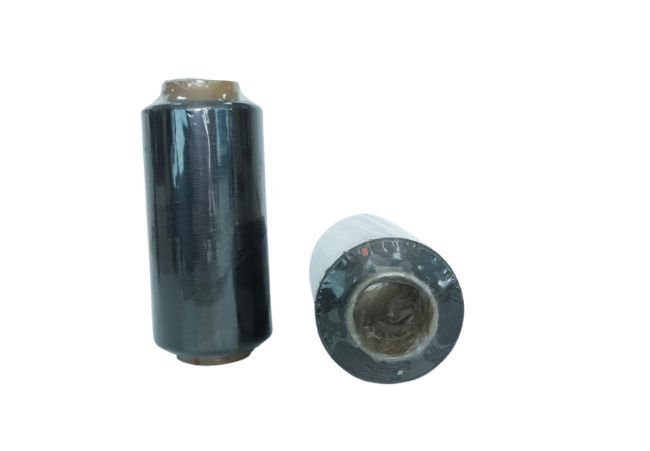

Carbon Fiber Tow
The carbon fibers made CC Graphite are widely used in application of aerospace, carbon/carbon composite, automobile , transportation, construction, sports & leisure, etc
- High-strength carbon fiber
- High-strength and intermediate-modulus carbon fiber
- High strength high-modulus carbon fiber
Main Fiber Types of CC Graphite
| Fiber Type | Filaments | Tensile Strength (MPa) | Modulus of Elasticity (GPs) | Elongation (%) | Linear Density (g/km) | Density (g/cm³） | Carbon Content (%) |
| T300 | 3k | 3530 | 230 | 1.5 | 198 | 1.76 | ≥91 |
| 6k | 3530 | 230 | 1.5 | 396 | 1.76 | ≥91 | |
| 12k | 3530 | 230 | 1.5 | 800 | 1.76 | ≥91 | |
| 24k | 3530 | 230 | 1.5 | 1600 | 1.76 | ≥91 | |
| T700 | 12k | 4900 | 230 | 2.1 | 800 | 1.8 | ≥91 |
| 24k | 4900 | 230 | 2.1 | 1650 | 1.8 | ≥91 | |
| T800 | 6k | 5490 | 560 | 1.9 | 223 | 1.81 | ≥94 |
| 12k | 5490 | 560 | 1.9 | 445 | 1.81 | ≥94 |
The data are average values. For more information, please do not hesitate to contact us.
